INS_CNGE3FE7MS4_REV– Rev. 4.30.14 PAGE 46

INSTALLATION AND OPERATION MANUAL CNGE3FE7MS4

TECH SUPPORT: 1.888.678.9427

MSTP

Multiple Spanning Tree Protocol (MSTP) is a standard protocol base on IEEE 802.1s. The

function is that several VLANs can be mapped to a reduced number of spanning tree instances

because most networks do not need more than a few logical topologies. It supports load-

balancing schemes and the CPU is sparer than PVST (Cisco proprietary technology).

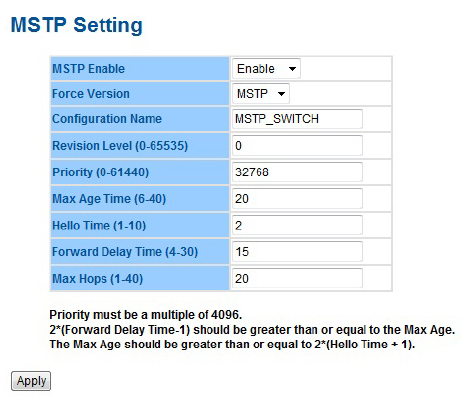

MSTP Setting interface
